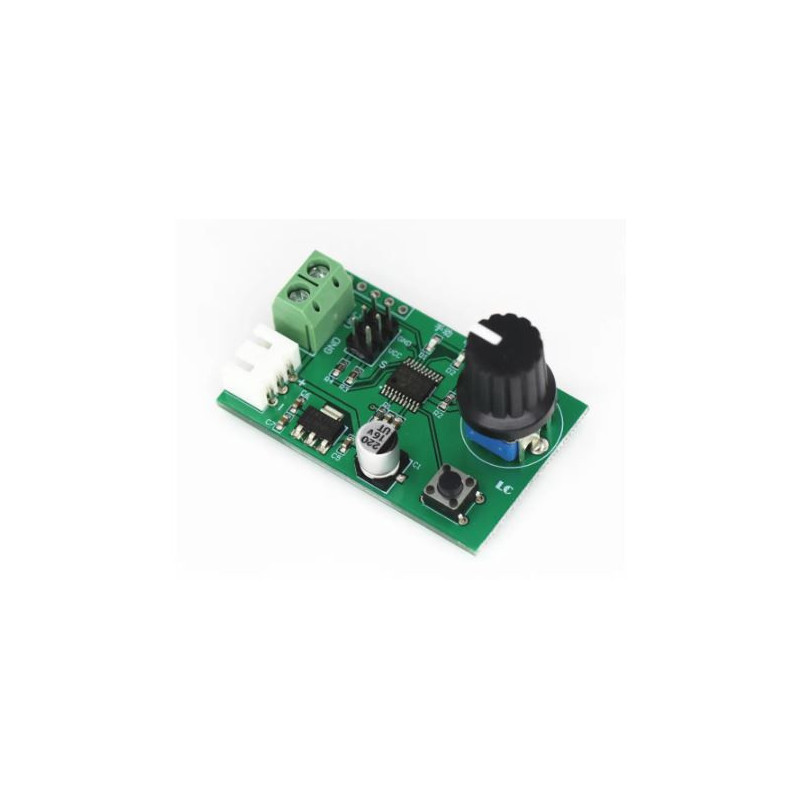

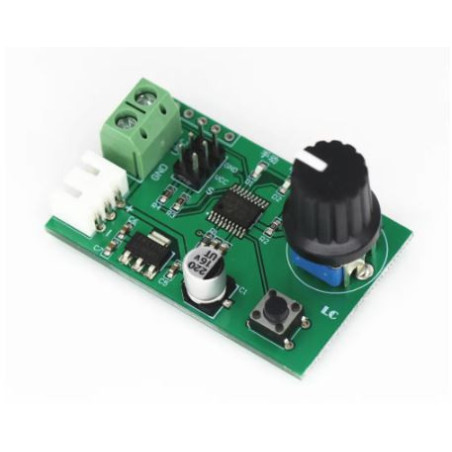

Servomotor controller [69-44]

2.Features:

1>.Support manual control;

2>.Support UART control;

3>.Support back to function;

4>.Support 2pcs servo motors at the same time;

5>.High precision;

6>.MCU STM8S103 Output high precision PWM signal;

7>.Button change work mode;

8>.Support 2S chargeable lithium battery.

3.Parameters:

1>.Input voltage: DC 5V(change according to actual);

2>.Control channel:2CH;

3>.Control precision:0.09°;

4>.Color:Green;

5>.Support cycle:20ms;

6>.Support servo motor:Pulse Width 0.5s~2.5s ;

7>.Operating Temperature:-20℃~70℃;

8>.Operating Humidity:5%-90%RH;

9>.Size:48*30*30mm;

4.Wiring method:

Users can input voltage from green terminal or white XH2.54mm female socket.

It just need connect to power supply and motor if users no need control servo motor by PC or MCU.

It need connect to PC or MCU if control servo by PC or MCU.We can provide a soft for PC.But users need write code by yourself and we can not provide test code.Because the controllers used by each person are different.Request your understanding!

Step 1:Connect input power supply at input terminal;

Step 2:Connect servo motor at 2*3Pin black male pins;

VCC:It connects to positive pole at servo motor;

GND:It connects to negative pole at servo motor;

S:It connects to input signal at servo motor.
